Fumego DX1002 Portable 200W Double Suction Head Fume Extractor HEPA Filter Cleaning Equipment 99.97% Efficiency for Soldering Smoke and Dust Removal
Does soldering produce harmful fumes? Industrial mobile fume purifiers use multi-layer filtration, meet emission standards, are easy to operate with one-button start/stop, and have passed CE/ISO certification. They can reduce workshop pollution and protect employee health.
- Overview
- Recommended Products
Overview
Are you troubled by soldering fume pollution?Will your equipment be affected by smoke and dust?Do you need to use one smoke purifier for two workstations at the same time?
Our DX1002 is designed to solve all these problems!
1.Industrial-Grade Durable Structure:An integrated all-metal body delivers robust impact resistance.

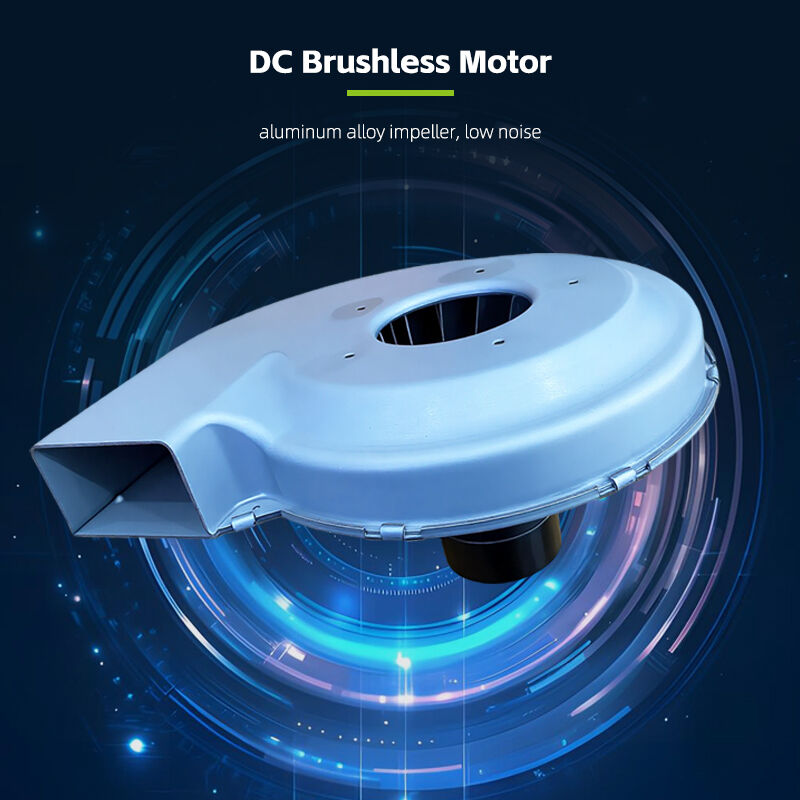

2.High-Efficiency, Energy-Saving, and Quiet Drive System:High-performance brushless motor paired with an aviation-grade aluminum alloy impeller. Ten-level speed adjustment enables powerful airflow with energy-saving operation.

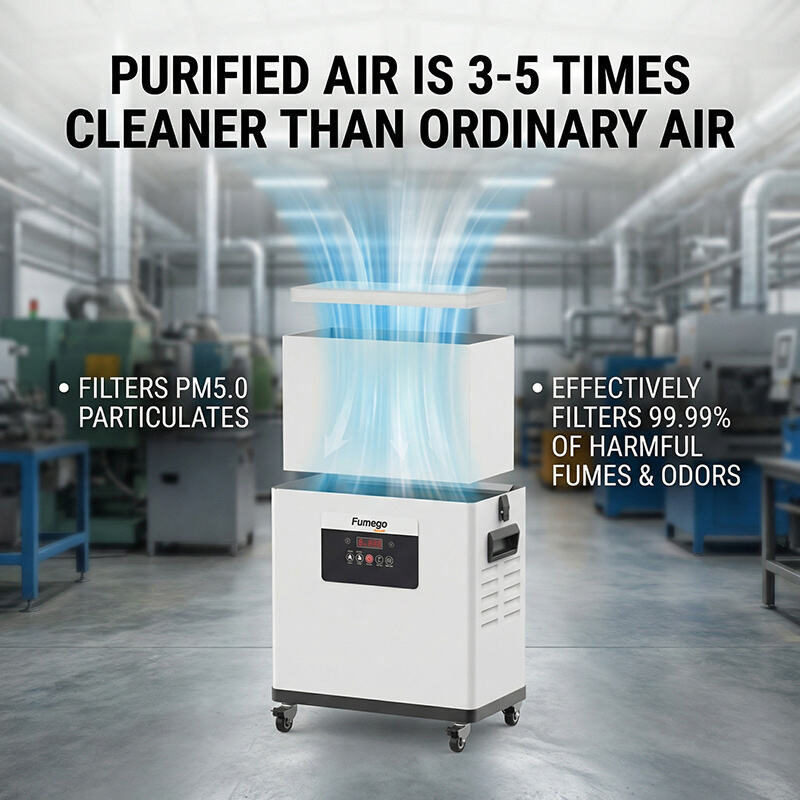

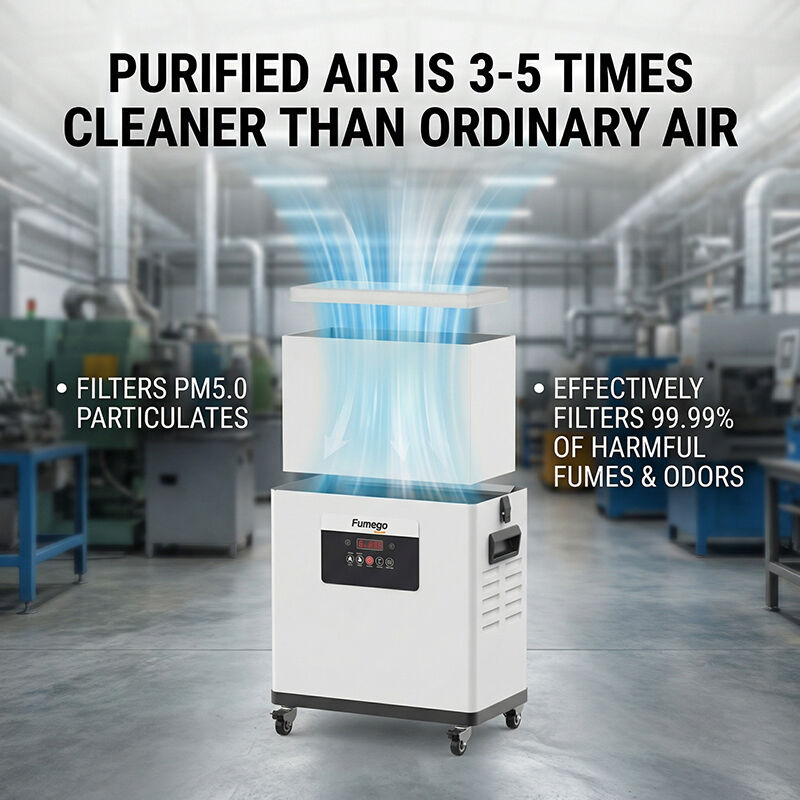

3.Three-Stage Precision Filtration System:A composite filter combining Pre-filter, HEPA, and Activated Carbon effectively removes 99.97% of 0.5-micron particles and adsorbs harmful gases.
4.Smart Maintenance and Low-Cost Operation:Individual filter replacement supported by an intelligent clogging-alert system prolongs service life.
5.Flexible Mobility, Ready for Immediate Use:Equipped with lockable silent universal wheels for smooth movement. Quick three-step installation allows for easy and flexible deployment across workshop floors.

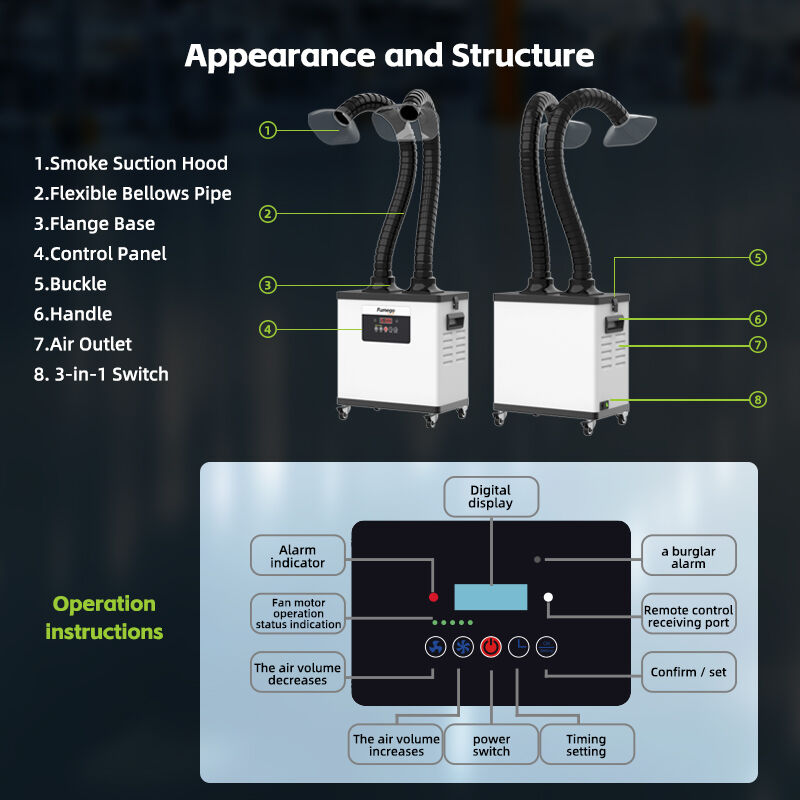

6.360° Adjustable Universal Articulated Hose for Flexible and Precise Fume Capture.

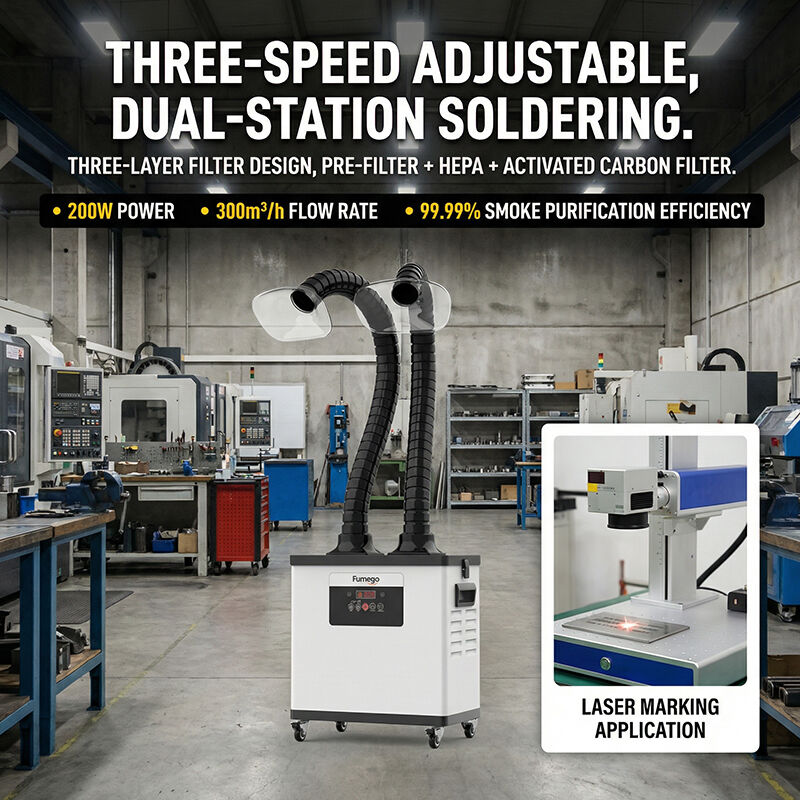

7.Dual-Station, One Unit.
| Specification | |
| Model | DX1002 |
| Voltage | 110/220v |
| Power | 200w |
| Maximum Air Flow | 150*2m³/h |
| Maximum negative pressure | 2200pa |
| Noise | <55dB |
| Wind speed | 11.5*2m/s |
| Number of filter elements | 3 |
| Filter consumables configuration | Primary filter cotton + medium filter element + high efficiency filter element |
| Air inlet diameter | 65mm |
| Dimensions | 460*260*515mm |
| Weight | 13kg |
| Warranty | 1 year |
1.What is the minimum order quantity (MOQ) for products?
Even 1 unit is Ok.
2.How long is your warranty?
Usually one year.
3.What is the production lead time?
Standard production time for regular orders is approximately 7 to 15 business days.

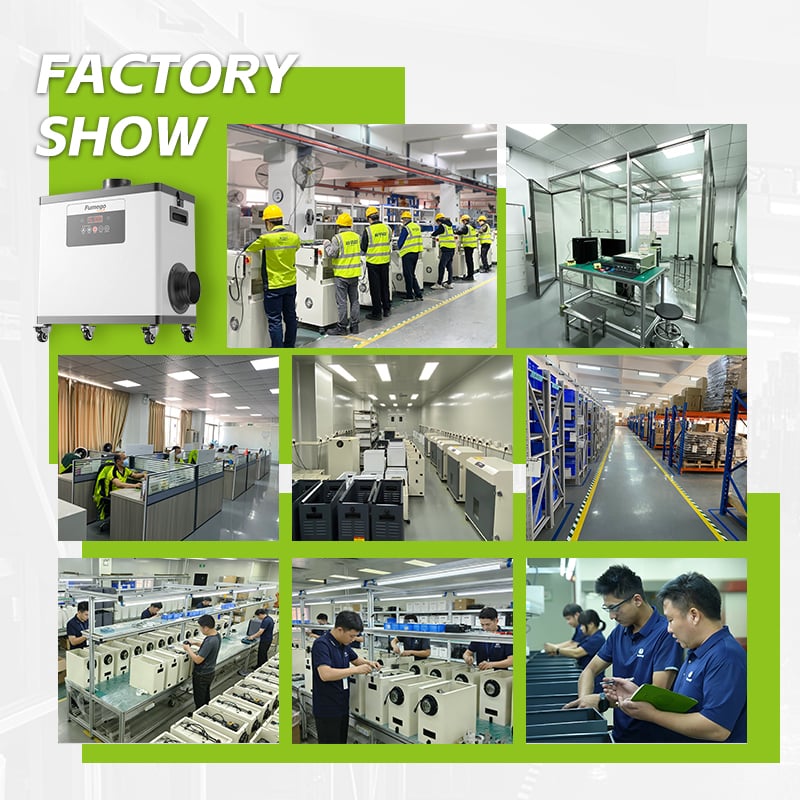

4.Can we visit your factory?
Yes, we're happy to arrange factory visits and audits for customers. We're only about 35 minutes from Shenzhen Bao'an Airport, and you can just schedule a time with us in advance.
5.What certifications do you have?
Our products are fully certified with international standards-like ISO for safety management, CE/UL for electrical safety, ATEX for explosion protection, FCC for electromagnetic compatibility, and RoHS for environmental compliance. This helps ensure our products meet strict requirements worldwide.
6.How often should the filters be replaced?
It really depends on how you use the unit and the model you have. Our equipment comes with a Filter Element Failure Warning-once the filter gets clogged and needs changing, the meter or indicator will alert you, so you know exactly when to replace it.
7.How effective is the purification system?
Our device uses a multi-stage high-efficiency filtration system, including a true HEPA filter and activated carbon filter to effectively remove harmful gases and odors. It also features a high-efficiency glass fiber filter that captures over 99% of particles as small as 0.3 microns. Plus, the filters are designed for easy installation and removal.
8.Do you offer OEM or ODM services?
Yes, we support both OEM and ODM services. You can either provide your own designs for us to produce, or we can handle the entire process from R&D to manufacturing. Common customizations like logo, packaging, color, pipe size and length, power rating, and more are all possible as long as the minimum order quantity is met.
